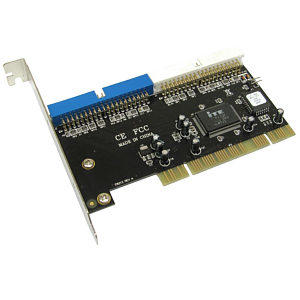

NLATA133-RAID: The NLATA133-RAID is a PCI - IDE card that allows connection of up to four IDE / ATAPI for RAID capability. The NLATA133-RAID is designed for RAID, which is a method where two or more hard drives are used to store data that can be read simultaneously from more than one drive providing better performance. Specification - 2 Independent IDE/ATA Channels.
- Compliant with PCI Specification Revision 2.2.
- Compliant with PCI IDE Controller Specification Revision 1.0.
- Support RAID sets (striped, mirrored & mirrored striped) or single drive configuration.
- Supports up to four IDE/ATA Devices.
- Supports mixed manufacturers and capacities in the same RAID set.
- Supports large capacity Hard Drives in excess of 137GB.
- CRC (Cyclical Redundancy Check).
- 128 Bytes Buffer.
- Built in 80 Pin cable detect circuitry.
- Supports Bus Master DMA at 133 MB/sec PCI burst rate.
- 3.3V Operating Voltage with 5V tolerant I/O.
|
