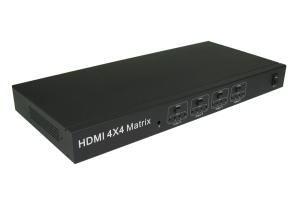

HD-SMX404: 4 x 4 HDMI Matrix Switch, allows any of the 4 inputs to be routed to any of 4 outputs independently, each output can be asigned to any of the 4 inputs allowing multiple display combinations. Specification- Switch easily between any four HDMI sources
- Distributes any of the four inputs to any or any combination of the four HDMI output displays
- Inputs can be switched via IR remote or serial(RS232)
- Support HDMI 1.3b Support highest video resolution 1080p.
- Support 225MHz/2.25Gbps per channel 6.75Gbps all channel) bandwidth.
- Support 12bit per channel (36bit all channel) deep colour.
- Support HDCP Support uncompressed audio such as LPCM.
- Support compressed audio such as DTS Digital, Dolby Digital including DTS-HD and Dolby True HD
- External 5V DC@4A Power Supply
- Rack mountable(no brackets supplied)
- 3.5mm jack socket on front panel for IR sensor
Contents: - HDMI Matrix
- Remote Control
- IR sensor with circa 1m cable
- 5V DC 4A Power Supply
|
